PVC front door profiles

uPVC front door profiles

Our uPVC front doors are available in two different profile variants. The profile IDEAL HT4000 offers a construction depth of 70 mm, the IDEAL HTplus profile has a depth of 85 mm. Both versions are fitted with a thermally separated aluminium sill which provides very good heat insulation.

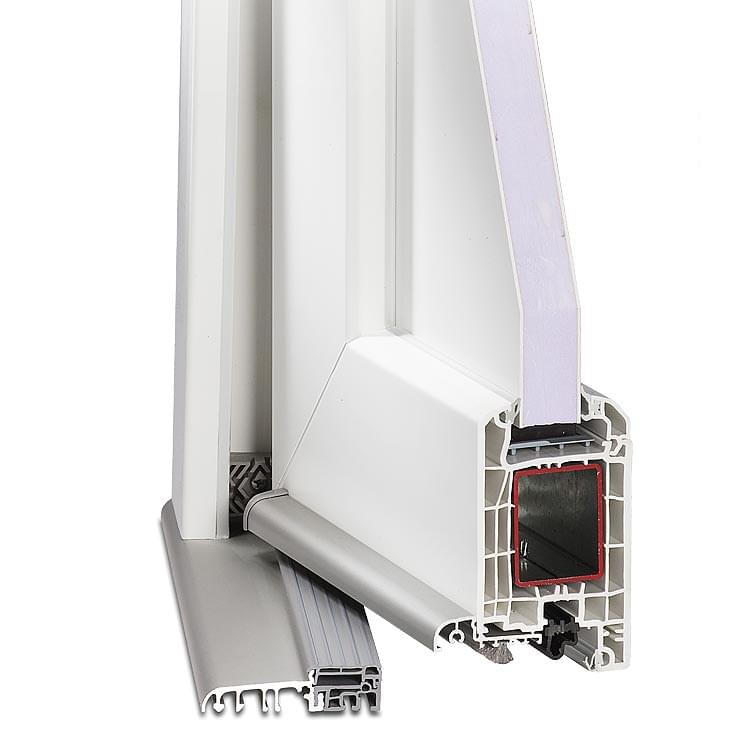

IDEAL HT4000

IDEAL HT4000

  • 4-5 Chamber system
  • Steel strengthening in sash and frame
  • Stable welded edge joint for better rigidity of the construction
  • Mounting seal system (2 seals)
  • Structural depth 70 mm
  • Frame width 80 mm
  • Flush sash (70 mm deep / 120 mm view)
  • Standard flattened glazing strip
  • Maximum glass thickness 41 mm
  • Aluminium sill 20 mm with thermal separation
  • Aluminium rain guard with integrated brush seal
  • Lower threshold with 1 rebate gasket and 1 sill seal

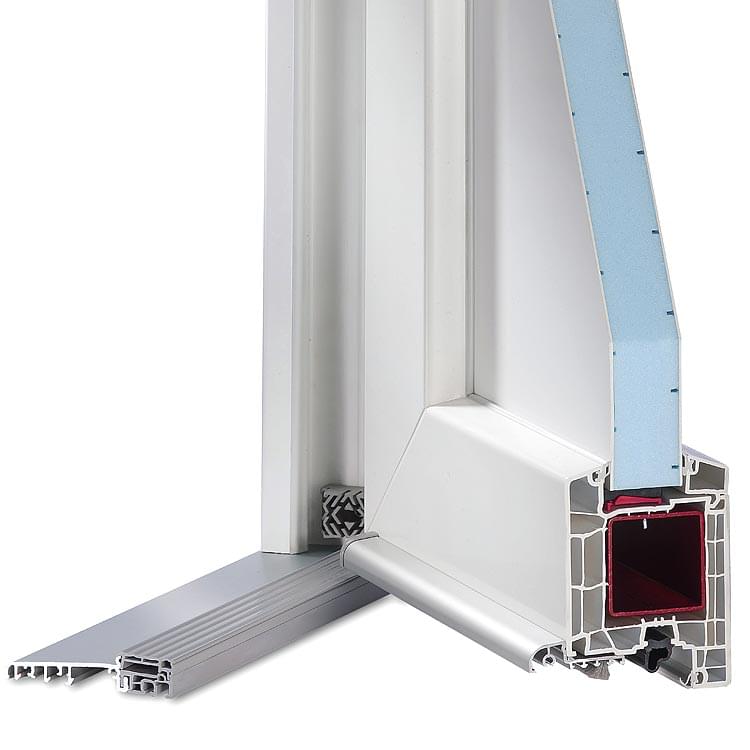

IDEAL HTplus

IDEAL HTplus

  • 5-6 Chamber system
  • Steel strengthening in sash and frame
  • Stable welded edge joint for better rigidity of the construction
  • Mounting seal system (2 seals)
  • Structural depth 85 mm
  • Frame width 80 mm
  • Flush sash (85 mm deep / 116 mm view)
  • Standard angular glazing strip
  • Maximum glass thickness 51 mm
  • Aluminium sill 20 mm with thermal separation
  • Aluminium rain guard with integrated brush seal
  • Lower threshold with 1 rebate gasket and 1 sill seal
