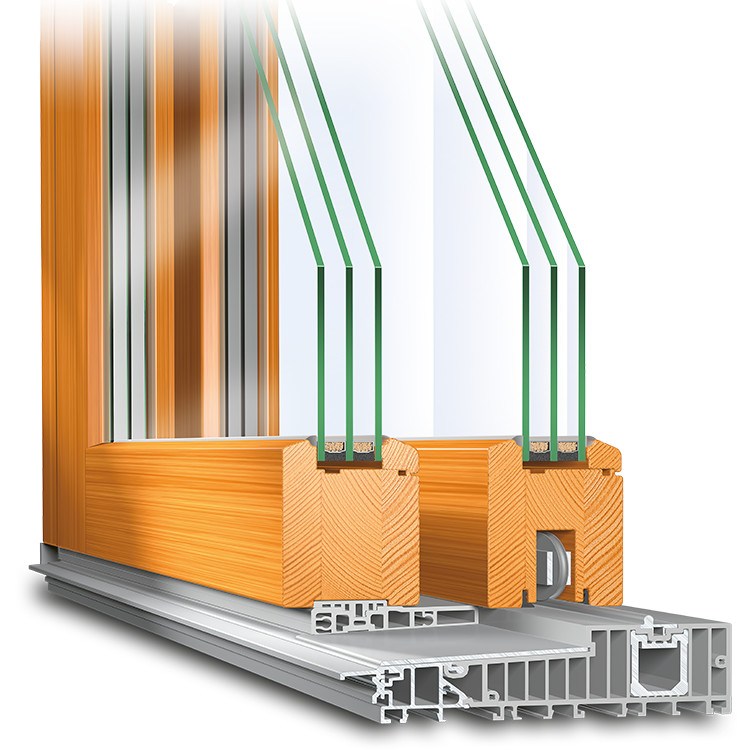

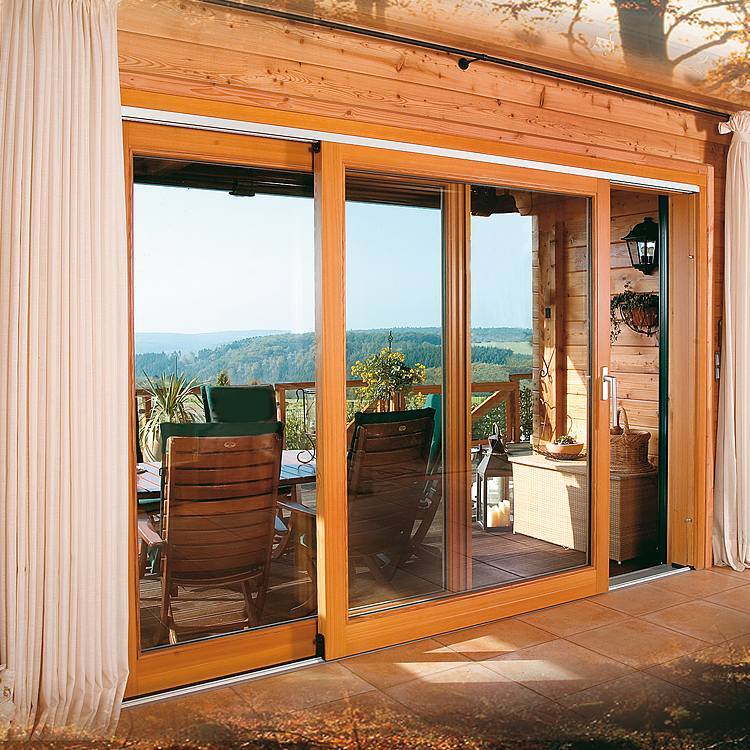

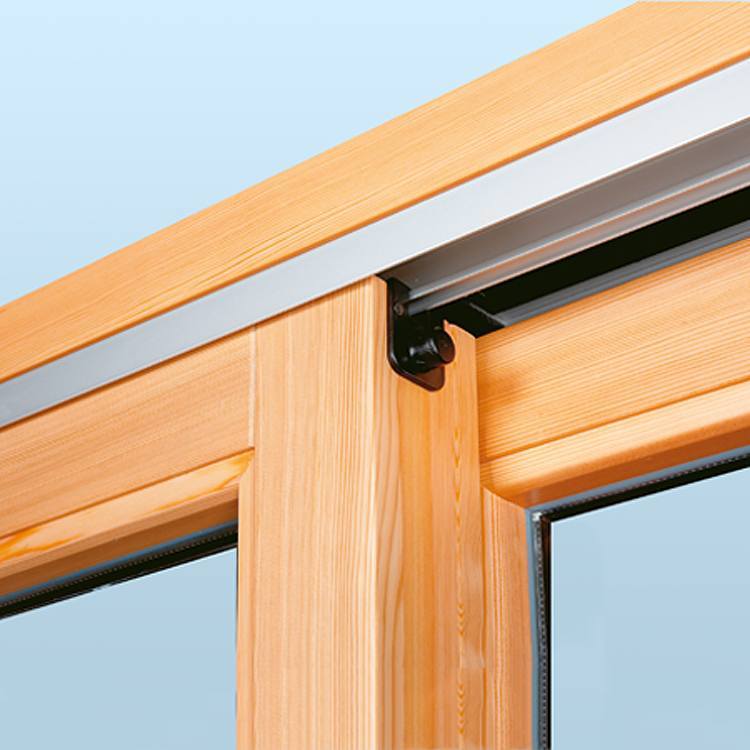

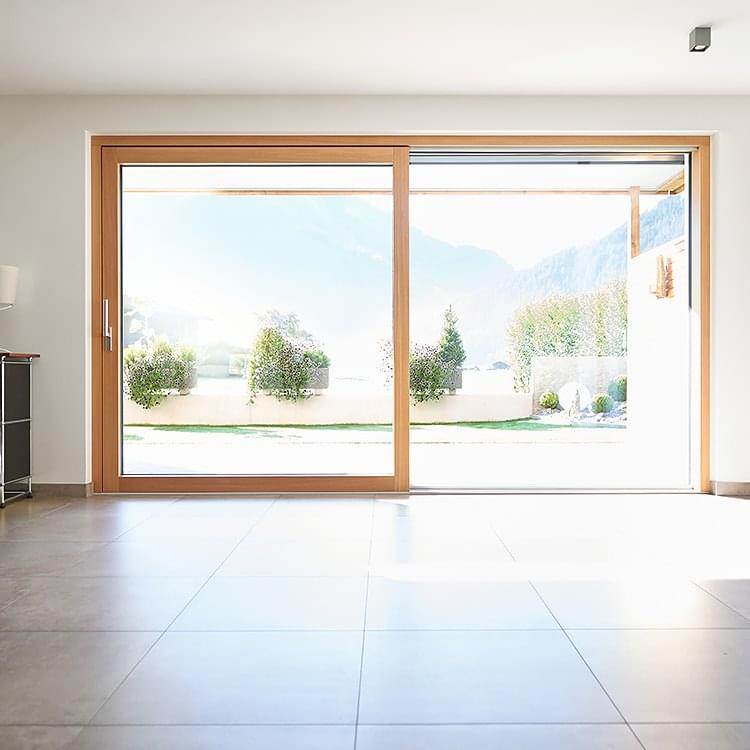

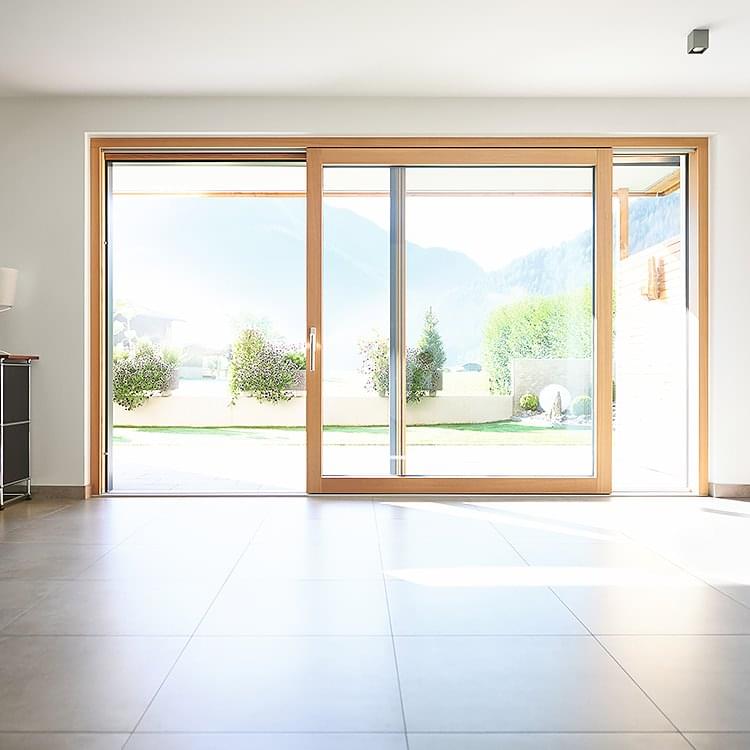

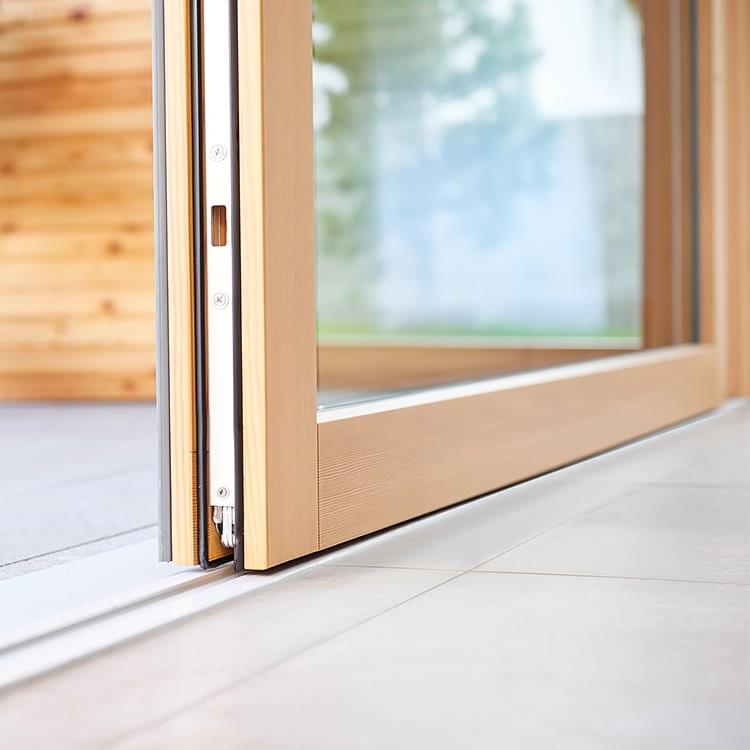

Profile section of Classic IV 78 wooden lift and slide doorLift and slide door made from woodLift and slide door thresholdWooden lift and slide door stopper detailClassic profile wooden lift and slide door fitting positionClosed wooden lift and slide doorWooden lift and slide door with a stopper on the right
UW- value
≥ 0.90

Wooden lift-and-slide door - Classic IV 78

Available in many wood types

from € 4,358from € 4,358

incl. 19% VAT, free delivery**

  • 180 mm construction depth
  • Very good sound and thermal insulation properties
  • Thermally separated threshold
Calculate Price
Product data sheet Classic IV 78
Uw values Classic IV 78
Detail drawings Classic IV 78
Warranty
Classic

Overview of features

Finish with sash depth of 78mm

High-quality Siegenia Aubi fitting with 2 locking bolts as standard

Dimensionally stable, thermally separated aluminium sill

Completely new sliding feeling thanks to maximum ease of movement

Simple and intuitive operation

High design standards due to concealed positioning

Wide range of colours

German brand quality

Customer satisfaction

Over 200,000 happy customers and counting

windows24.com customer Matthias R. from Pforzheim

Top marks for windows24.com!

windows24 customer Walt K. from Southhampton

It couldn't have gone better!

windows24 customer family W. from Düsseldorf

The windows and the front door have a noticeable heat-insulating effect!

TECHNICAL DETAILS

CLASSIC – system description

  • Layer-glued sawn timber, available in wood types: pine, spruce, Meranti, larch, eucalyptus or oak.
  • 180 mm construction depth/profile depth with a Uf value = 1.23 W/m²K
  • Triple glazing up to a Ug value of 0.6 W/m²K
  • Siegenia-Aubi HS PORTAL 300KF
  • High basic security with two locking bolts as standard
  • Lever handles and and recessed handles in the colours white, brown and titanium
  • Weather-resistant thanks to uPVC with modern additive technology
  • Weatherproof thanks to extruding seals; in accordance with DIN18055
  • Thermal, safety and soundproof glazing possible
  • Effortless opening and closing, even with heavy sashes
  • Concealed locking technology through the swivel hook gear
  • High resistance to wind and driving rain-proof
  • Increased light penetration due to a large glass area

Options:

  • Additional break-in protection with security fittings rated up to RC2 N
  • Integrated multipoint locking system, lockable from inside and outside
  • Lock monitoring
PRODUCT INFORMATION

Classic IV 78 lift-and-slide door

The lift and slide door in the Classic profile has a construction depth of 78 mm and can be made from various different types of wood.

ImageProfileModelProduct TypeWidthHeight
IV 78Classic IV 78Lift and slide door from 213.50 cm from 200 cm
LogoBrandAvailabilityConditionColorPrice
windows24.com available New White, Mahogany, Walnut from € 4,358
