uPVC tilt and slide patio door - aluplast IDEAL® 8000

Profile Description

• Glazing: choose between double or triple glazing.

• Glass seal: The glass seal provides protection against water penetration.

• Sash design: Modern with a recessed design.

• Glass strip: Provides the required contact pressure between the seals and glass.

• Sealing levels: Three sealing levels provide very good heat and noise insulation.

• Steel reinforcement: Ensures long term stability.

• Profile chambers: To achieve good thermal insulation values, these profiles are divided into several chambers.

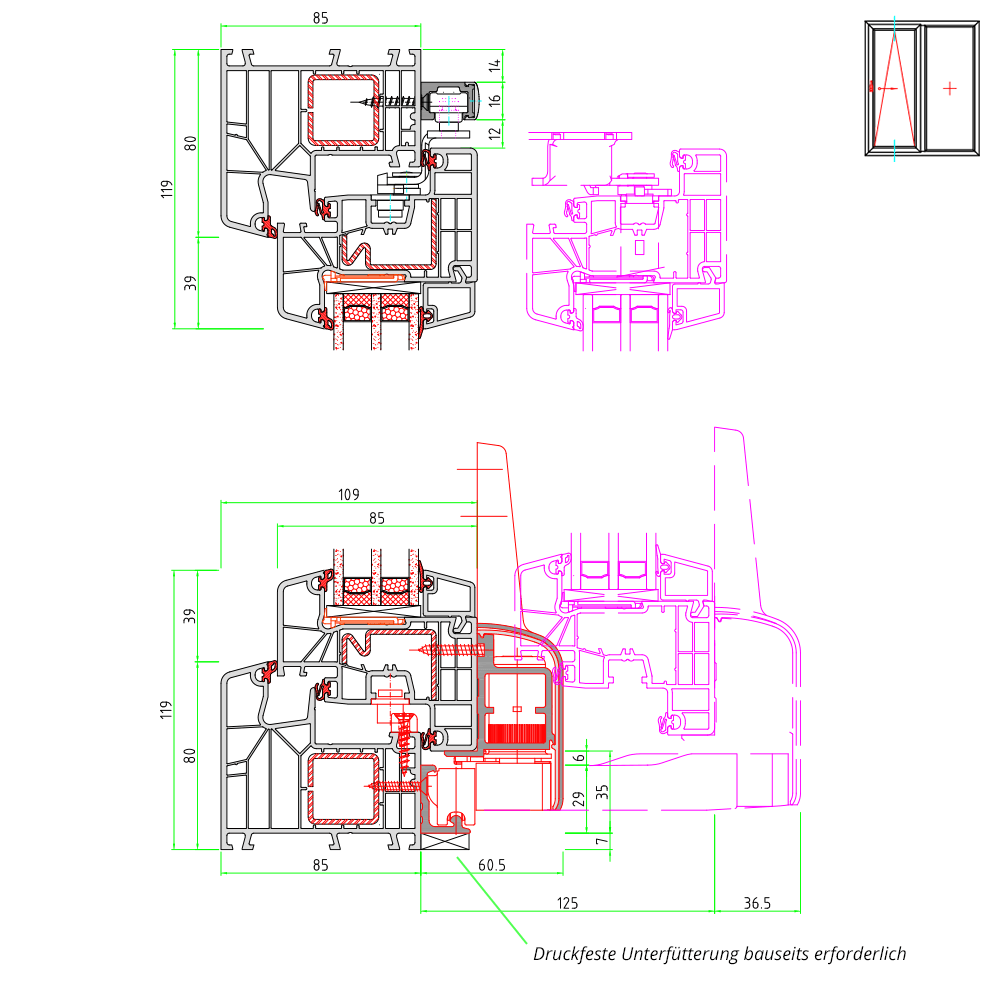

IDEAL 8000 – system description

• 85 mm construction depth and Uf value = 1.0 W/m²K
• Standard glazing Ug 1.1 W/m²K
• Triple glazing up to a Ug value of 0.6 W/m²K
• Modern design with Classicline profile
• Frame with bolted steel insert with a visible width of 70 mm
• Compression seal system with 3 levels in papyrus white
• Disc thicknesses from 20-51 mm
• Parallel slide and tilt hardware with malfunction lock
• Basic security with two mushroom-head locking bolts and two safety strike plates
• Intuitive operation and elegant, smooth sliding of the sash into the closed position

• Black decor seal
• Simplified assembly thanks to the height and tilt adjustment and a self-supporting running track without padding up to 160kg
• Weather-resistant thanks to use of uPVC with modern additive technology
• Weatherproof thanks to extruding seals; in accordance with DIN18055
• Up to 97% recyclable materials
• Thermal, safety and soundproof glazing possible

Optional

• Integrated door lock, lockable from inside and outside
• Lock monitoring
